stream_buffer.c File Reference

#include <stdint.h>
#include <string.h>
#include "FreeRTOS.h"
#include "task.h"
#include "stream_buffer.h"

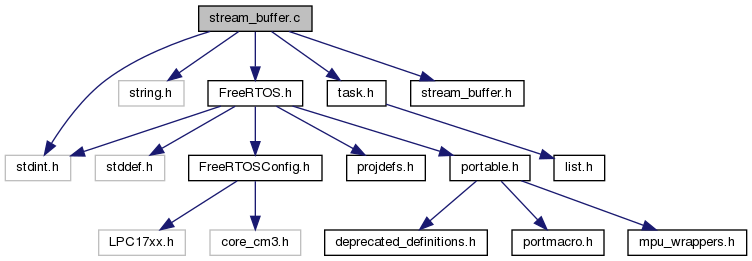

Include dependency graph for stream_buffer.c:

Data Structures
struct	xSTREAM_BUFFER

Macros
#define	MPU_WRAPPERS_INCLUDED_FROM_API_FILE
#define	sbRECEIVE_COMPLETED(pxStreamBuffer)
#define	sbRECEIVE_COMPLETED_FROM_ISR(pxStreamBuffer, pxHigherPriorityTaskWoken)
#define	sbSEND_COMPLETED(pxStreamBuffer)
#define	sbSEND_COMPLETE_FROM_ISR(pxStreamBuffer, pxHigherPriorityTaskWoken)
#define	sbBYTES_TO_STORE_MESSAGE_LENGTH   ( sizeof( size_t ) )
#define	sbFLAGS_IS_MESSAGE_BUFFER   ( ( uint8_t ) 1 ) /* Set if the stream buffer was created as a message buffer, in which case it holds discrete messages rather than a stream. */
#define	sbFLAGS_IS_STATICALLY_ALLOCATED   ( ( uint8_t ) 2 ) /* Set if the stream buffer was created using statically allocated memory. */

Typedefs
typedef struct xSTREAM_BUFFER	StreamBuffer_t

Functions
static size_t	prvBytesInBuffer (const StreamBuffer_t *const pxStreamBuffer) PRIVILEGED_FUNCTION
static size_t	prvWriteBytesToBuffer (StreamBuffer_t *const pxStreamBuffer, const uint8_t *pucData, size_t xCount) PRIVILEGED_FUNCTION
static size_t	prvReadMessageFromBuffer (StreamBuffer_t *pxStreamBuffer, void *pvRxData, size_t xBufferLengthBytes, size_t xBytesAvailable, size_t xBytesToStoreMessageLength) PRIVILEGED_FUNCTION
static size_t	prvWriteMessageToBuffer (StreamBuffer_t *const pxStreamBuffer, const void *pvTxData, size_t xDataLengthBytes, size_t xSpace, size_t xRequiredSpace) PRIVILEGED_FUNCTION
static size_t	prvReadBytesFromBuffer (StreamBuffer_t *pxStreamBuffer, uint8_t *pucData, size_t xMaxCount, size_t xBytesAvailable)
static PRIVILEGED_FUNCTION void	prvInitialiseNewStreamBuffer (StreamBuffer_t *const pxStreamBuffer, uint8_t *const pucBuffer, size_t xBufferSizeBytes, size_t xTriggerLevelBytes, BaseType_t xIsMessageBuffer) PRIVILEGED_FUNCTION
StreamBufferHandle_t	xStreamBufferGenericCreate (size_t xBufferSizeBytes, size_t xTriggerLevelBytes, BaseType_t xIsMessageBuffer)
void	vStreamBufferDelete (StreamBufferHandle_t xStreamBuffer)
BaseType_t	xStreamBufferReset (StreamBufferHandle_t xStreamBuffer)
BaseType_t	xStreamBufferSetTriggerLevel (StreamBufferHandle_t xStreamBuffer, size_t xTriggerLevel)
size_t	xStreamBufferSpacesAvailable (StreamBufferHandle_t xStreamBuffer)
size_t	xStreamBufferBytesAvailable (StreamBufferHandle_t xStreamBuffer)
size_t	xStreamBufferSend (StreamBufferHandle_t xStreamBuffer, const void *pvTxData, size_t xDataLengthBytes, TickType_t xTicksToWait)
size_t	xStreamBufferSendFromISR (StreamBufferHandle_t xStreamBuffer, const void *pvTxData, size_t xDataLengthBytes, BaseType_t *const pxHigherPriorityTaskWoken)
size_t	xStreamBufferReceive (StreamBufferHandle_t xStreamBuffer, void *pvRxData, size_t xBufferLengthBytes, TickType_t xTicksToWait)
size_t	xStreamBufferReceiveFromISR (StreamBufferHandle_t xStreamBuffer, void *pvRxData, size_t xBufferLengthBytes, BaseType_t *const pxHigherPriorityTaskWoken)
BaseType_t	xStreamBufferIsEmpty (StreamBufferHandle_t xStreamBuffer)
BaseType_t	xStreamBufferIsFull (StreamBufferHandle_t xStreamBuffer)
BaseType_t	xStreamBufferSendCompletedFromISR (StreamBufferHandle_t xStreamBuffer, BaseType_t *pxHigherPriorityTaskWoken)
BaseType_t	xStreamBufferReceiveCompletedFromISR (StreamBufferHandle_t xStreamBuffer, BaseType_t *pxHigherPriorityTaskWoken)

Macro Definition Documentation

MPU_WRAPPERS_INCLUDED_FROM_API_FILE

#define MPU_WRAPPERS_INCLUDED_FROM_API_FILE

sbBYTES_TO_STORE_MESSAGE_LENGTH

#define sbBYTES_TO_STORE_MESSAGE_LENGTH   ( sizeof( size_t ) )

sbFLAGS_IS_MESSAGE_BUFFER

#define sbFLAGS_IS_MESSAGE_BUFFER   ( ( uint8_t ) 1 ) /* Set if the stream buffer was created as a message buffer, in which case it holds discrete messages rather than a stream. */

sbFLAGS_IS_STATICALLY_ALLOCATED

#define sbFLAGS_IS_STATICALLY_ALLOCATED   ( ( uint8_t ) 2 ) /* Set if the stream buffer was created using statically allocated memory. */

sbRECEIVE_COMPLETED

#define sbRECEIVE_COMPLETED

(

pxStreamBuffer

)

Value:

        vTaskSuspendAll();                                                              \
        {                                                                               \
            if( ( pxStreamBuffer )->xTaskWaitingToSend != NULL )                        \
            {                                                                           \
                ( void ) xTaskNotify( ( pxStreamBuffer )->xTaskWaitingToSend,           \
                                      ( uint32_t ) 0,                                   \
                                      eNoAction );                                      \
                ( pxStreamBuffer )->xTaskWaitingToSend = NULL;                          \
            }                                                                           \
        }                                                                               \
        ( void ) xTaskResumeAll();

sbRECEIVE_COMPLETED_FROM_ISR

#define sbRECEIVE_COMPLETED_FROM_ISR	(		pxStreamBuffer,
			pxHigherPriorityTaskWoken
	)

Value:

    {                                                                                   \
    UBaseType_t uxSavedInterruptStatus;                                                 \
                                                                                        \
        uxSavedInterruptStatus = ( UBaseType_t ) portSET_INTERRUPT_MASK_FROM_ISR();     \
        {                                                                               \
            if( ( pxStreamBuffer )->xTaskWaitingToSend != NULL )                        \
            {                                                                           \
                ( void ) xTaskNotifyFromISR( ( pxStreamBuffer )->xTaskWaitingToSend,    \
                                             ( uint32_t ) 0,                            \
                                             eNoAction,                                 \
                                             pxHigherPriorityTaskWoken );               \
                ( pxStreamBuffer )->xTaskWaitingToSend = NULL;                          \
            }                                                                           \
        }                                                                               \
        portCLEAR_INTERRUPT_MASK_FROM_ISR( uxSavedInterruptStatus );                    \
    }

sbSEND_COMPLETE_FROM_ISR

#define sbSEND_COMPLETE_FROM_ISR	(		pxStreamBuffer,
			pxHigherPriorityTaskWoken
	)

Value:

    {                                                                                   \
    UBaseType_t uxSavedInterruptStatus;                                                 \
                                                                                        \
        uxSavedInterruptStatus = ( UBaseType_t ) portSET_INTERRUPT_MASK_FROM_ISR();     \
        {                                                                               \
            if( ( pxStreamBuffer )->xTaskWaitingToReceive != NULL )                     \
            {                                                                           \
                ( void ) xTaskNotifyFromISR( ( pxStreamBuffer )->xTaskWaitingToReceive, \
                                             ( uint32_t ) 0,                            \
                                             eNoAction,                                 \
                                             pxHigherPriorityTaskWoken );               \
                ( pxStreamBuffer )->xTaskWaitingToReceive = NULL;                       \
            }                                                                           \
        }                                                                               \
        portCLEAR_INTERRUPT_MASK_FROM_ISR( uxSavedInterruptStatus );                    \
    }

sbSEND_COMPLETED

#define sbSEND_COMPLETED

(

pxStreamBuffer

)

Value:

        vTaskSuspendAll();                                                              \
        {                                                                               \
            if( ( pxStreamBuffer )->xTaskWaitingToReceive != NULL )                     \
            {                                                                           \
                ( void ) xTaskNotify( ( pxStreamBuffer )->xTaskWaitingToReceive,        \
                                      ( uint32_t ) 0,                                   \
                                      eNoAction );                                      \
                ( pxStreamBuffer )->xTaskWaitingToReceive = NULL;                       \
            }                                                                           \
        }                                                                               \
        ( void ) xTaskResumeAll();

Typedef Documentation

StreamBuffer_t

typedef struct xSTREAM_BUFFER StreamBuffer_t

Function Documentation

prvBytesInBuffer()

static size_t prvBytesInBuffer ( const StreamBuffer_t *const  pxStreamBuffer )

static

Here is the caller graph for this function:

prvInitialiseNewStreamBuffer()

static void prvInitialiseNewStreamBuffer ( StreamBuffer_t *const  pxStreamBuffer, uint8_t *const  pucBuffer, size_t  xBufferSizeBytes, size_t  xTriggerLevelBytes, BaseType_t  xIsMessageBuffer  )

static

Here is the caller graph for this function:

prvReadBytesFromBuffer()

static size_t prvReadBytesFromBuffer ( StreamBuffer_t *  pxStreamBuffer, uint8_t *  pucData, size_t  xMaxCount, size_t  xBytesAvailable  )

static

Here is the caller graph for this function:

prvReadMessageFromBuffer()

static size_t prvReadMessageFromBuffer ( StreamBuffer_t *  pxStreamBuffer, void *  pvRxData, size_t  xBufferLengthBytes, size_t  xBytesAvailable, size_t  xBytesToStoreMessageLength  )

static

Here is the call graph for this function:

Here is the caller graph for this function:

prvWriteBytesToBuffer()

static size_t prvWriteBytesToBuffer ( StreamBuffer_t *const  pxStreamBuffer, const uint8_t *  pucData, size_t  xCount  )

static

Here is the caller graph for this function:

prvWriteMessageToBuffer()

static size_t prvWriteMessageToBuffer ( StreamBuffer_t *const  pxStreamBuffer, const void *  pvTxData, size_t  xDataLengthBytes, size_t  xSpace, size_t  xRequiredSpace  )

static

Here is the call graph for this function:

Here is the caller graph for this function:

vStreamBufferDelete()

void vStreamBufferDelete

(

StreamBufferHandle_t

xStreamBuffer

)

Here is the call graph for this function:

xStreamBufferBytesAvailable()

size_t xStreamBufferBytesAvailable

(

StreamBufferHandle_t

xStreamBuffer

)

Here is the call graph for this function:

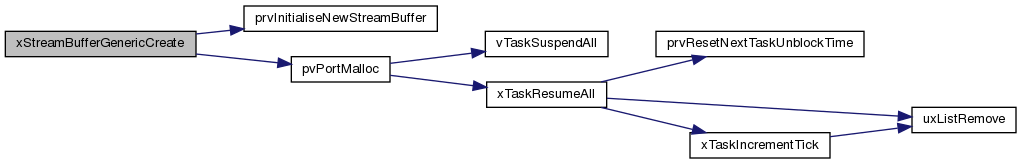

xStreamBufferGenericCreate()

StreamBufferHandle_t xStreamBufferGenericCreate	(	size_t	xBufferSizeBytes,
		size_t	xTriggerLevelBytes,
		BaseType_t	xIsMessageBuffer
	)

Here is the call graph for this function:

xStreamBufferIsEmpty()

BaseType_t xStreamBufferIsEmpty

(

StreamBufferHandle_t

xStreamBuffer

)

xStreamBufferIsFull()

BaseType_t xStreamBufferIsFull

(

StreamBufferHandle_t

xStreamBuffer

)

Here is the call graph for this function:

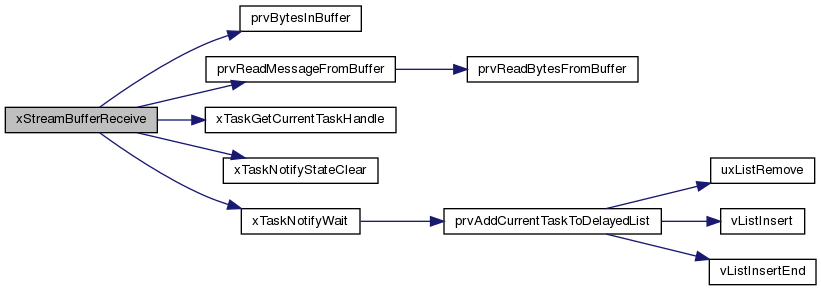

xStreamBufferReceive()

size_t xStreamBufferReceive	(	StreamBufferHandle_t	xStreamBuffer,
		void *	pvRxData,
		size_t	xBufferLengthBytes,
		TickType_t	xTicksToWait
	)

Here is the call graph for this function:

xStreamBufferReceiveCompletedFromISR()

BaseType_t xStreamBufferReceiveCompletedFromISR	(	StreamBufferHandle_t	xStreamBuffer,
		BaseType_t *	pxHigherPriorityTaskWoken
	)

xStreamBufferReceiveFromISR()

size_t xStreamBufferReceiveFromISR	(	StreamBufferHandle_t	xStreamBuffer,
		void *	pvRxData,
		size_t	xBufferLengthBytes,
		BaseType_t *const	pxHigherPriorityTaskWoken
	)

Here is the call graph for this function:

xStreamBufferReset()

BaseType_t xStreamBufferReset

(

StreamBufferHandle_t

xStreamBuffer

)

Here is the call graph for this function:

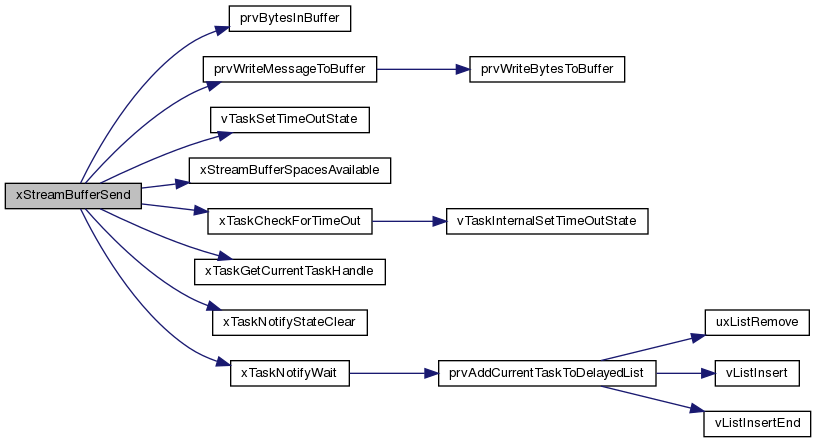

xStreamBufferSend()

size_t xStreamBufferSend	(	StreamBufferHandle_t	xStreamBuffer,
		const void *	pvTxData,
		size_t	xDataLengthBytes,
		TickType_t	xTicksToWait
	)

Here is the call graph for this function:

xStreamBufferSendCompletedFromISR()

BaseType_t xStreamBufferSendCompletedFromISR	(	StreamBufferHandle_t	xStreamBuffer,
		BaseType_t *	pxHigherPriorityTaskWoken
	)

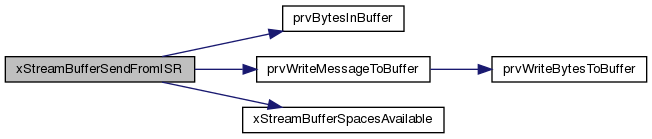

xStreamBufferSendFromISR()

size_t xStreamBufferSendFromISR	(	StreamBufferHandle_t	xStreamBuffer,
		const void *	pvTxData,
		size_t	xDataLengthBytes,
		BaseType_t *const	pxHigherPriorityTaskWoken
	)

Here is the call graph for this function:

xStreamBufferSetTriggerLevel()

BaseType_t xStreamBufferSetTriggerLevel	(	StreamBufferHandle_t	xStreamBuffer,
		size_t	xTriggerLevel
	)

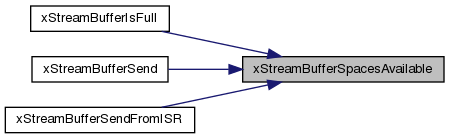

xStreamBufferSpacesAvailable()

size_t xStreamBufferSpacesAvailable

(

StreamBufferHandle_t

xStreamBuffer

)

Here is the caller graph for this function:
