#include <stdlib.h>
#include <string.h>
#include "FreeRTOS.h"
#include "task.h"
#include "timers.h"
#include "stack_macros.h"

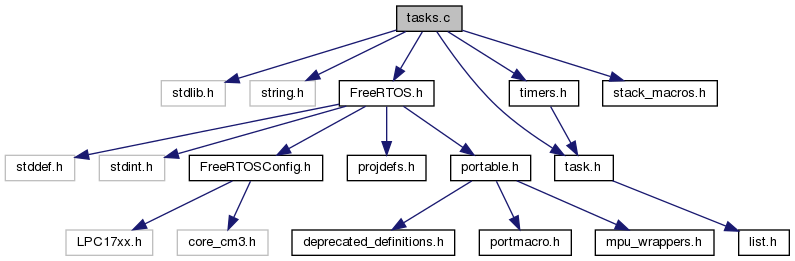

Include dependency graph for tasks.c:

Data Structures
struct	tskTaskControlBlock

Macros
#define	MPU_WRAPPERS_INCLUDED_FROM_API_FILE

#define	taskYIELD_IF_USING_PREEMPTION() portYIELD_WITHIN_API()

#define	taskNOT_WAITING_NOTIFICATION ( ( uint8_t ) 0 )

#define	taskWAITING_NOTIFICATION ( ( uint8_t ) 1 )

#define	taskNOTIFICATION_RECEIVED ( ( uint8_t ) 2 )

#define	tskSTACK_FILL_BYTE ( 0xa5U )

#define	tskSTATIC_AND_DYNAMIC_ALLOCATION_POSSIBLE ( ( configSUPPORT_STATIC_ALLOCATION == 1 ) && ( configSUPPORT_DYNAMIC_ALLOCATION == 1 ) )

#define	tskDYNAMICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 0 )

#define	tskSTATICALLY_ALLOCATED_STACK_ONLY ( ( uint8_t ) 1 )

#define	tskSTATICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 2 )

#define	tskSET_NEW_STACKS_TO_KNOWN_VALUE 0

#define	tskBLOCKED_CHAR ( 'B' )

#define	tskREADY_CHAR ( 'R' )

#define	tskDELETED_CHAR ( 'D' )

#define	tskSUSPENDED_CHAR ( 'S' )

#define	configIDLE_TASK_NAME "IDLE"

#define	taskRECORD_READY_PRIORITY(uxPriority)

#define	taskSELECT_HIGHEST_PRIORITY_TASK()

#define	taskRESET_READY_PRIORITY(uxPriority)

#define	portRESET_READY_PRIORITY(uxPriority, uxTopReadyPriority)

#define	taskSWITCH_DELAYED_LISTS()

#define	prvAddTaskToReadyList(pxTCB)

#define	prvGetTCBFromHandle(pxHandle) ( ( ( pxHandle ) == NULL ) ? ( TCB_t * ) pxCurrentTCB : ( TCB_t * ) ( pxHandle ) )

#define	taskEVENT_LIST_ITEM_VALUE_IN_USE 0x80000000UL

Typedefs
typedef struct tskTaskControlBlock	tskTCB

typedef tskTCB	TCB_t

Functions
static BaseType_t	prvTaskIsTaskSuspended (const TaskHandle_t xTask) PRIVILEGED_FUNCTION

static void	prvInitialiseTaskLists (static void prvCheckTasksWaitingTermination void)

static void	prvInitialiseNewTask (TaskFunction_t pxTaskCode, const char const pcName, const uint32_t ulStackDepth, void const pvParameters, UBaseType_t uxPriority, TaskHandle_t const pxCreatedTask, TCB_t pxNewTCB, const MemoryRegion_t *const xRegions)

static void	prvAddNewTaskToReadyList (TCB_t *pxNewTCB)

void	vTaskDelete (TaskHandle_t xTaskToDelete)

void	vTaskDelayUntil (TickType_t *const pxPreviousWakeTime, const TickType_t xTimeIncrement)

void	vTaskDelay (const TickType_t xTicksToDelay)

eTaskState	eTaskGetState (TaskHandle_t xTask)

UBaseType_t	uxTaskPriorityGet (TaskHandle_t xTask)

UBaseType_t	uxTaskPriorityGetFromISR (TaskHandle_t xTask)

void	vTaskPrioritySet (TaskHandle_t xTask, UBaseType_t uxNewPriority)

void	vTaskSuspend (TaskHandle_t xTaskToSuspend)

void	vTaskResume (TaskHandle_t xTaskToResume)

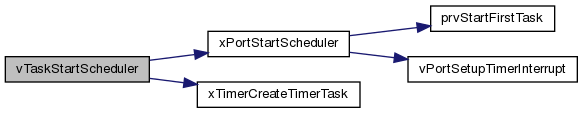

void	vTaskStartScheduler (void)

void	vTaskEndScheduler (void)

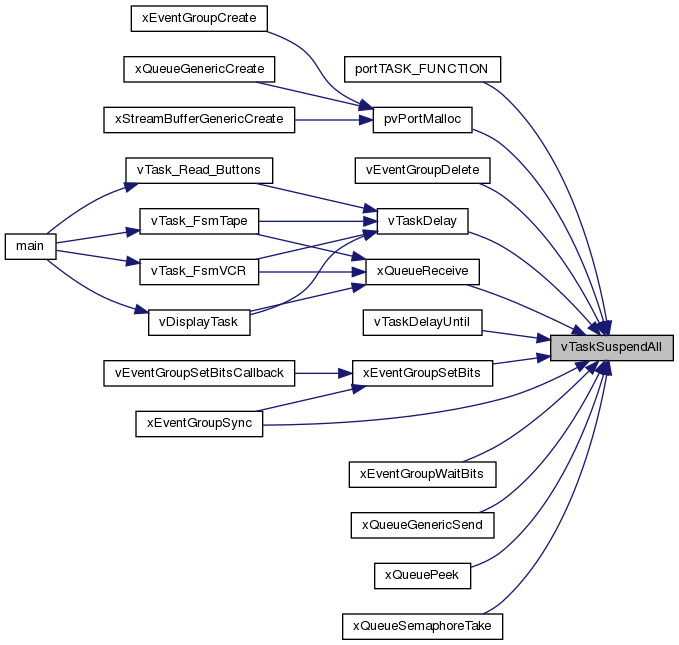

void	vTaskSuspendAll (void)

BaseType_t	xTaskResumeAll (void)

TickType_t	xTaskGetTickCount (void)

TickType_t	xTaskGetTickCountFromISR (void)

UBaseType_t	uxTaskGetNumberOfTasks (void)

char *	pcTaskGetName (TaskHandle_t xTaskToQuery)

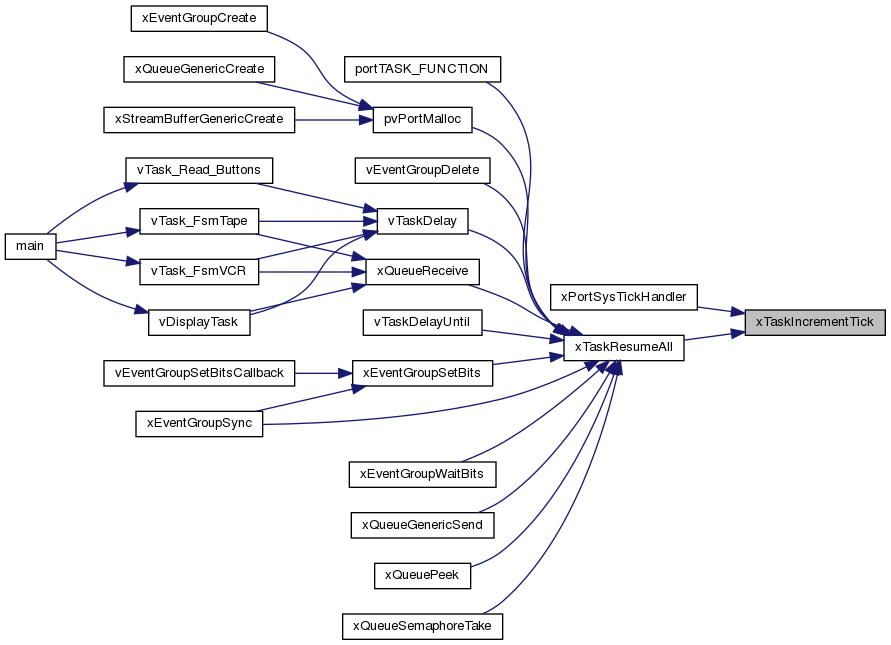

BaseType_t	xTaskIncrementTick (void)

void	vTaskSwitchContext (void)

void	vTaskPlaceOnEventList (List_t *const pxEventList, const TickType_t xTicksToWait)

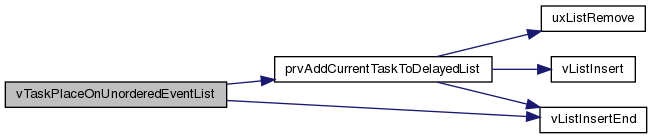

void	vTaskPlaceOnUnorderedEventList (List_t *pxEventList, const TickType_t xItemValue, const TickType_t xTicksToWait)

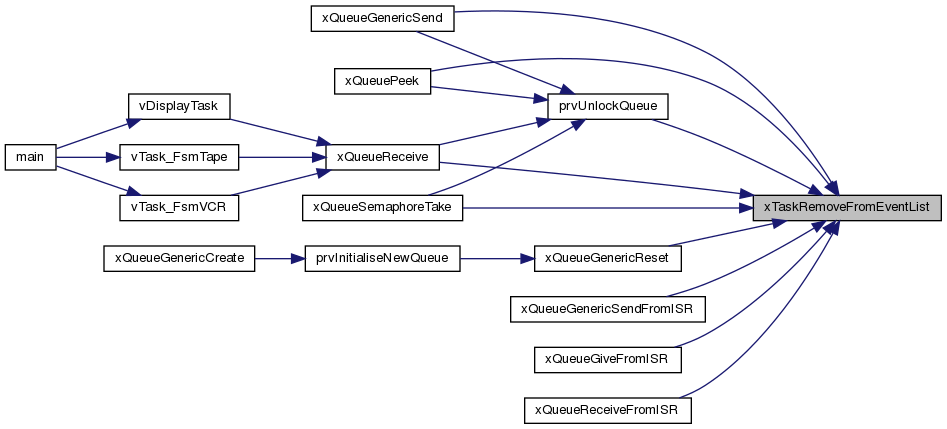

BaseType_t	xTaskRemoveFromEventList (const List_t *const pxEventList)

void	vTaskRemoveFromUnorderedEventList (ListItem_t *pxEventListItem, const TickType_t xItemValue)

void	vTaskSetTimeOutState (TimeOut_t *const pxTimeOut)

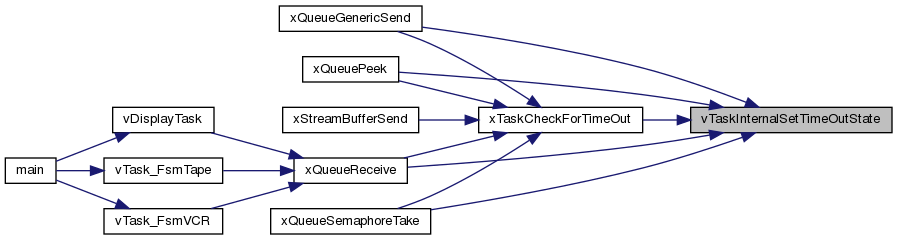

void	vTaskInternalSetTimeOutState (TimeOut_t *const pxTimeOut)

BaseType_t	xTaskCheckForTimeOut (TimeOut_t const pxTimeOut, TickType_t const pxTicksToWait)

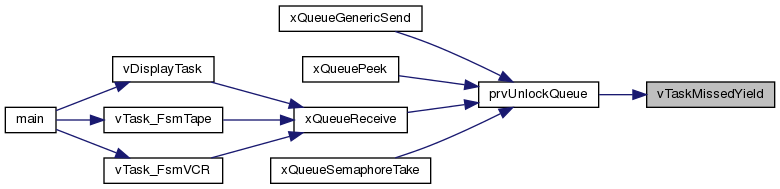

void	vTaskMissedYield (void)

static	portTASK_FUNCTION (prvIdleTask, pvParameters)

static void	prvInitialiseTaskLists (void)

static void	prvCheckTasksWaitingTermination (void)

static void	prvDeleteTCB (TCB_t *pxTCB)

static void	prvResetNextTaskUnblockTime (void)

TaskHandle_t	xTaskGetCurrentTaskHandle (void)

TickType_t	uxTaskResetEventItemValue (void)

uint32_t	ulTaskNotifyTake (BaseType_t xClearCountOnExit, TickType_t xTicksToWait)

BaseType_t	xTaskNotifyWait (uint32_t ulBitsToClearOnEntry, uint32_t ulBitsToClearOnExit, uint32_t *pulNotificationValue, TickType_t xTicksToWait)

BaseType_t	xTaskGenericNotify (TaskHandle_t xTaskToNotify, uint32_t ulValue, eNotifyAction eAction, uint32_t *pulPreviousNotificationValue)

BaseType_t	xTaskGenericNotifyFromISR (TaskHandle_t xTaskToNotify, uint32_t ulValue, eNotifyAction eAction, uint32_t pulPreviousNotificationValue, BaseType_t pxHigherPriorityTaskWoken)

void	vTaskNotifyGiveFromISR (TaskHandle_t xTaskToNotify, BaseType_t *pxHigherPriorityTaskWoken)

BaseType_t	xTaskNotifyStateClear (TaskHandle_t xTask)

static void	prvAddCurrentTaskToDelayedList (TickType_t xTicksToWait, const BaseType_t xCanBlockIndefinitely)

Variables
PRIVILEGED_DATA TCB_t *volatile	pxCurrentTCB = NULL

static PRIVILEGED_DATA List_t	pxReadyTasksLists [configMAX_PRIORITIES]

static PRIVILEGED_DATA List_t	xDelayedTaskList1

static PRIVILEGED_DATA List_t	xDelayedTaskList2

static PRIVILEGED_DATA List_t *volatile	pxDelayedTaskList

static PRIVILEGED_DATA List_t *volatile	pxOverflowDelayedTaskList

static PRIVILEGED_DATA List_t	xPendingReadyList

static PRIVILEGED_DATA List_t	xTasksWaitingTermination

static PRIVILEGED_DATA volatile UBaseType_t	uxDeletedTasksWaitingCleanUp = ( UBaseType_t ) 0U

static PRIVILEGED_DATA List_t	xSuspendedTaskList

static PRIVILEGED_DATA volatile UBaseType_t	uxCurrentNumberOfTasks = ( UBaseType_t ) 0U

static PRIVILEGED_DATA volatile TickType_t	xTickCount = ( TickType_t ) configINITIAL_TICK_COUNT

static PRIVILEGED_DATA volatile UBaseType_t	uxTopReadyPriority = tskIDLE_PRIORITY

static PRIVILEGED_DATA volatile BaseType_t	xSchedulerRunning = pdFALSE

static PRIVILEGED_DATA volatile UBaseType_t	uxPendedTicks = ( UBaseType_t ) 0U

static PRIVILEGED_DATA volatile BaseType_t	xYieldPending = pdFALSE

static PRIVILEGED_DATA volatile BaseType_t	xNumOfOverflows = ( BaseType_t ) 0

static PRIVILEGED_DATA UBaseType_t	uxTaskNumber = ( UBaseType_t ) 0U

static PRIVILEGED_DATA volatile TickType_t	xNextTaskUnblockTime = ( TickType_t ) 0U

static PRIVILEGED_DATA TaskHandle_t	xIdleTaskHandle = NULL

static PRIVILEGED_DATA volatile UBaseType_t	uxSchedulerSuspended = ( UBaseType_t ) pdFALSE

Macro Definition Documentation

◆ configIDLE_TASK_NAME

#define configIDLE_TASK_NAME "IDLE"

◆ MPU_WRAPPERS_INCLUDED_FROM_API_FILE

#define MPU_WRAPPERS_INCLUDED_FROM_API_FILE

◆ portRESET_READY_PRIORITY

#define portRESET_READY_PRIORITY	(	uxPriority,
		uxTopReadyPriority
	)

◆ prvAddTaskToReadyList

#define prvAddTaskToReadyList ( pxTCB )

Value:

    traceMOVED_TASK_TO_READY_STATE( pxTCB );                                                        \
    taskRECORD_READY_PRIORITY( ( pxTCB )->uxPriority );                                             \
    vListInsertEnd( &( pxReadyTasksLists[ ( pxTCB )->uxPriority ] ), &( ( pxTCB )->xStateListItem ) ); \
    tracePOST_MOVED_TASK_TO_READY_STATE( pxTCB )

◆ prvGetTCBFromHandle

#define prvGetTCBFromHandle ( pxHandle ) ( ( ( pxHandle ) == NULL ) ? ( TCB_t * ) pxCurrentTCB : ( TCB_t * ) ( pxHandle ) )

◆ taskEVENT_LIST_ITEM_VALUE_IN_USE

#define taskEVENT_LIST_ITEM_VALUE_IN_USE 0x80000000UL

◆ taskNOT_WAITING_NOTIFICATION

#define taskNOT_WAITING_NOTIFICATION ( ( uint8_t ) 0 )

◆ taskNOTIFICATION_RECEIVED

#define taskNOTIFICATION_RECEIVED ( ( uint8_t ) 2 )

◆ taskRECORD_READY_PRIORITY

#define taskRECORD_READY_PRIORITY ( uxPriority )

Value:

    {                                                                                                   \
        if( ( uxPriority ) > uxTopReadyPriority )                                                       \
        {                                                                                               \
            uxTopReadyPriority = ( uxPriority );                                                        \
        }                                                                                               \
    } /* taskRECORD_READY_PRIORITY */

◆ taskRESET_READY_PRIORITY

#define taskRESET_READY_PRIORITY ( uxPriority )

◆ taskSELECT_HIGHEST_PRIORITY_TASK

#define taskSELECT_HIGHEST_PRIORITY_TASK ( )

Value:

    {                                                                                                   \
    UBaseType_t uxTopPriority = uxTopReadyPriority;                                                     \
                                                                                                        \
        /* Find the highest priority queue that contains ready tasks. */                                \
        while( listLIST_IS_EMPTY( &( pxReadyTasksLists[ uxTopPriority ] ) ) )                           \
        {                                                                                               \
            configASSERT( uxTopPriority );                                                              \
            --uxTopPriority;                                                                            \
        }                                                                                               \
                                                                                                        \
        /* listGET_OWNER_OF_NEXT_ENTRY indexes through the list, so the tasks of                        \
        the same priority get an equal share of the processor time. */                                  \
        listGET_OWNER_OF_NEXT_ENTRY( pxCurrentTCB, &( pxReadyTasksLists[ uxTopPriority ] ) );           \
        uxTopReadyPriority = uxTopPriority;                                                             \
    } /* taskSELECT_HIGHEST_PRIORITY_TASK */

◆ taskSWITCH_DELAYED_LISTS

#define taskSWITCH_DELAYED_LISTS ( )

Value:

{                                                                                                   \
    List_t *pxTemp;                                                                                 \
                                                                                                    \
    /* The delayed tasks list should be empty when the lists are switched. */                       \
    configASSERT( ( listLIST_IS_EMPTY( pxDelayedTaskList ) ) );                                     \
                                                                                                    \
    pxTemp = pxDelayedTaskList;                                                                     \
    pxDelayedTaskList = pxOverflowDelayedTaskList;                                                  \
    pxOverflowDelayedTaskList = pxTemp;                                                             \
    xNumOfOverflows++;                                                                              \
    prvResetNextTaskUnblockTime();                                                                  \
}

◆ taskWAITING_NOTIFICATION

#define taskWAITING_NOTIFICATION ( ( uint8_t ) 1 )

◆ taskYIELD_IF_USING_PREEMPTION

#define taskYIELD_IF_USING_PREEMPTION ( ) portYIELD_WITHIN_API()

◆ tskBLOCKED_CHAR

#define tskBLOCKED_CHAR ( 'B' )

◆ tskDELETED_CHAR

#define tskDELETED_CHAR ( 'D' )

◆ tskDYNAMICALLY_ALLOCATED_STACK_AND_TCB

#define tskDYNAMICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 0 )

◆ tskREADY_CHAR

#define tskREADY_CHAR ( 'R' )

◆ tskSET_NEW_STACKS_TO_KNOWN_VALUE

#define tskSET_NEW_STACKS_TO_KNOWN_VALUE 0

◆ tskSTACK_FILL_BYTE

#define tskSTACK_FILL_BYTE ( 0xa5U )

◆ tskSTATIC_AND_DYNAMIC_ALLOCATION_POSSIBLE

#define tskSTATIC_AND_DYNAMIC_ALLOCATION_POSSIBLE ( ( configSUPPORT_STATIC_ALLOCATION == 1 ) && ( configSUPPORT_DYNAMIC_ALLOCATION == 1 ) )

◆ tskSTATICALLY_ALLOCATED_STACK_AND_TCB

#define tskSTATICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 2 )

◆ tskSTATICALLY_ALLOCATED_STACK_ONLY

#define tskSTATICALLY_ALLOCATED_STACK_ONLY ( ( uint8_t ) 1 )

◆ tskSUSPENDED_CHAR

#define tskSUSPENDED_CHAR ( 'S' )

Typedef Documentation

◆ TCB_t

typedef tskTCB TCB_t

◆ tskTCB

typedef struct tskTaskControlBlock tskTCB

Function Documentation

◆ eTaskGetState()

eTaskState eTaskGetState ( TaskHandle_t xTask )

task. h

eTaskState eTaskGetState( TaskHandle_t xTask );

INCLUDE_eTaskGetState must be defined as 1 for this function to be available. See the configuration section for more information.

Obtain the state of any task. States are encoded by the eTaskState enumerated type.

Parameters

xTask Handle of the task to be queried.

Returns: The state of xTask at the time the function was called. Note the state of the task might change between the function being called, and the functions return value being tested by the calling task.

◆ pcTaskGetName()

char* pcTaskGetName ( TaskHandle_t xTaskToQuery )

◆ portTASK_FUNCTION()

static portTASK_FUNCTION	(	prvIdleTask	,
		pvParameters
	)

static

THIS IS THE RTOS IDLE TASK - WHICH IS CREATED AUTOMATICALLY WHEN THE SCHEDULER IS STARTED.

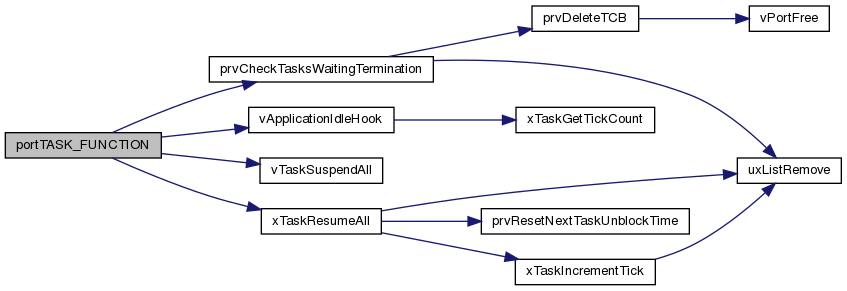

Here is the call graph for this function:

◆ prvAddCurrentTaskToDelayedList()

static void prvAddCurrentTaskToDelayedList	(	TickType_t	xTicksToWait,
		const BaseType_t	xCanBlockIndefinitely
	)

static

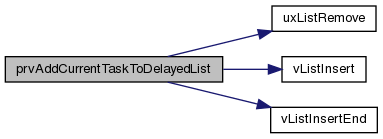

Here is the call graph for this function:

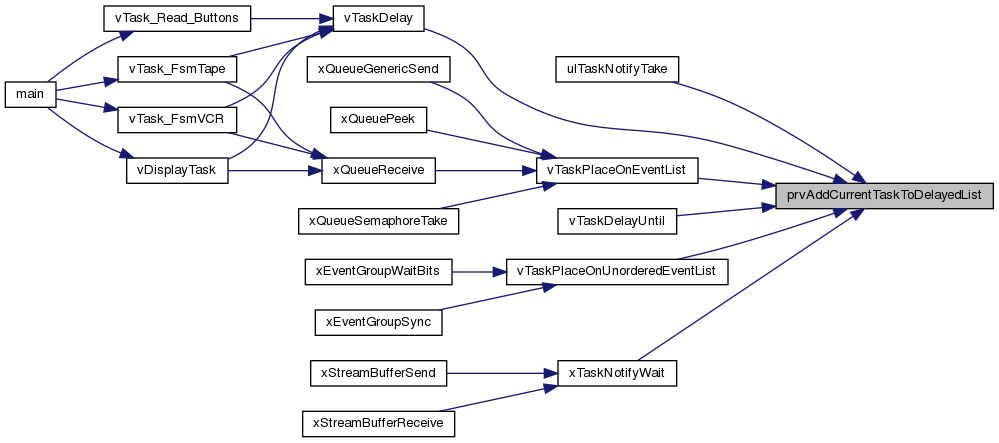

Here is the caller graph for this function:

◆ prvAddNewTaskToReadyList()

static void prvAddNewTaskToReadyList ( TCB_t * pxNewTCB )

static

Here is the call graph for this function:

◆ prvCheckTasksWaitingTermination()

static void prvCheckTasksWaitingTermination ( void )

static

THIS FUNCTION IS CALLED FROM THE RTOS IDLE TASK

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prvDeleteTCB()

static void prvDeleteTCB ( TCB_t * pxTCB )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prvInitialiseNewTask()

static void prvInitialiseNewTask	(	TaskFunction_t	pxTaskCode,
		const char *const	pcName,
		const uint32_t	ulStackDepth,
		void *const	pvParameters,
		UBaseType_t	uxPriority,
		TaskHandle_t *const	pxCreatedTask,
		TCB_t *	pxNewTCB,
		const MemoryRegion_t *const	xRegions
	)

static

Here is the call graph for this function:

◆ prvInitialiseTaskLists() [1/2]

static void prvInitialiseTaskLists ( static void prvCheckTasksWaitingTermination void )

static

Here is the caller graph for this function:

◆ prvInitialiseTaskLists() [2/2]

static void prvInitialiseTaskLists ( void )

static

Here is the call graph for this function:

◆ prvResetNextTaskUnblockTime()

static void prvResetNextTaskUnblockTime ( void )

static

Here is the caller graph for this function:

◆ prvTaskIsTaskSuspended()

static BaseType_t prvTaskIsTaskSuspended ( const TaskHandle_t xTask )

static

Utility task that simply returns pdTRUE if the task referenced by xTask is currently in the Suspended state, or pdFALSE if the task referenced by xTask is in any other state.

Here is the caller graph for this function:

◆ ulTaskNotifyTake()

uint32_t ulTaskNotifyTake	(	BaseType_t	xClearCountOnExit,
		TickType_t	xTicksToWait
	)

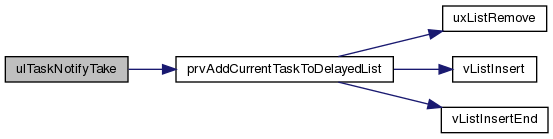

Here is the call graph for this function:

◆ uxTaskGetNumberOfTasks()

UBaseType_t uxTaskGetNumberOfTasks ( void )

◆ uxTaskPriorityGet()

UBaseType_t uxTaskPriorityGet ( TaskHandle_t xTask )

◆ uxTaskPriorityGetFromISR()

UBaseType_t uxTaskPriorityGetFromISR ( TaskHandle_t xTask )

task. h

UBaseType_t uxTaskPriorityGetFromISR( TaskHandle_t xTask );

A version of uxTaskPriorityGet() that can be used from an ISR.

◆ uxTaskResetEventItemValue()

TickType_t uxTaskResetEventItemValue ( void )

Here is the caller graph for this function:

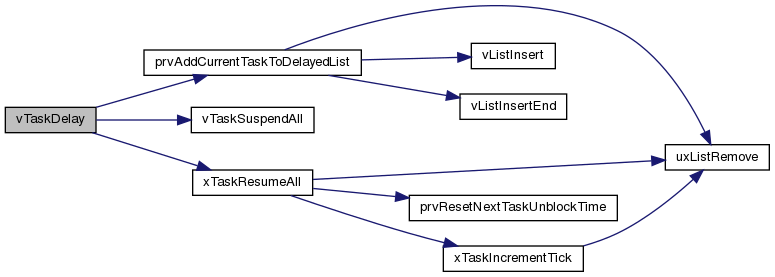

◆ vTaskDelay()

void vTaskDelay ( const TickType_t xTicksToDelay )

Here is the call graph for this function:

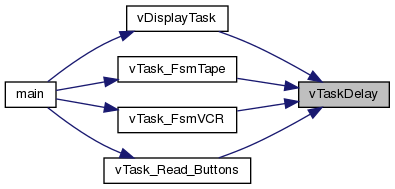

Here is the caller graph for this function:

◆ vTaskDelayUntil()

void vTaskDelayUntil	(	TickType_t *const	pxPreviousWakeTime,
		const TickType_t	xTimeIncrement
	)

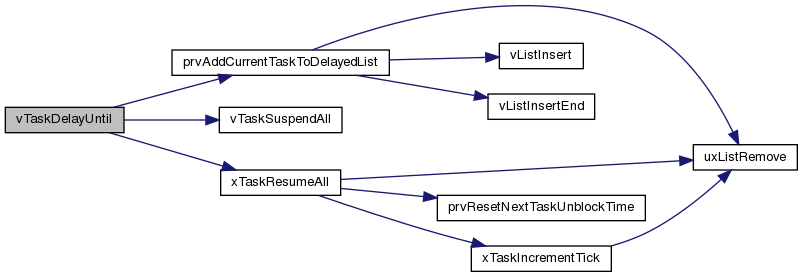

Here is the call graph for this function:

◆ vTaskDelete()

void vTaskDelete ( TaskHandle_t xTaskToDelete )

Here is the call graph for this function:

◆ vTaskEndScheduler()

void vTaskEndScheduler ( void )

Here is the call graph for this function:

◆ vTaskInternalSetTimeOutState()

void vTaskInternalSetTimeOutState ( TimeOut_t *const pxTimeOut )

Here is the caller graph for this function:

◆ vTaskMissedYield()

void vTaskMissedYield ( void )

Here is the caller graph for this function:

◆ vTaskNotifyGiveFromISR()

void vTaskNotifyGiveFromISR	(	TaskHandle_t	xTaskToNotify,
		BaseType_t *	pxHigherPriorityTaskWoken
	)

Here is the call graph for this function:

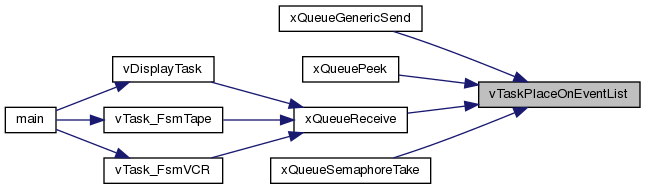

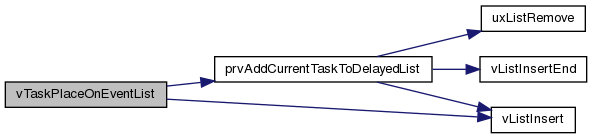

◆ vTaskPlaceOnEventList()

void vTaskPlaceOnEventList	(	List_t *const	pxEventList,
		const TickType_t	xTicksToWait
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vTaskPlaceOnUnorderedEventList()

void vTaskPlaceOnUnorderedEventList	(	List_t *	pxEventList,
		const TickType_t	xItemValue,
		const TickType_t	xTicksToWait
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vTaskPrioritySet()

void vTaskPrioritySet	(	TaskHandle_t	xTask,
		UBaseType_t	uxNewPriority
	)

Here is the call graph for this function:

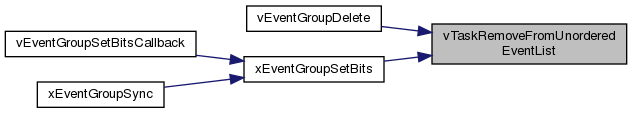

◆ vTaskRemoveFromUnorderedEventList()

void vTaskRemoveFromUnorderedEventList	(	ListItem_t *	pxEventListItem,
		const TickType_t	xItemValue
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vTaskResume()

void vTaskResume ( TaskHandle_t xTaskToResume )

Here is the call graph for this function:

◆ vTaskSetTimeOutState()

void vTaskSetTimeOutState ( TimeOut_t *const pxTimeOut )

Here is the caller graph for this function:

◆ vTaskStartScheduler()

void vTaskStartScheduler ( void )

Here is the call graph for this function:

Here is the caller graph for this function:

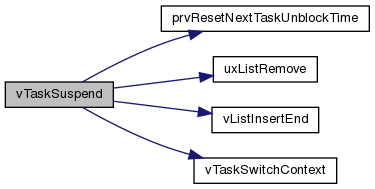

◆ vTaskSuspend()

void vTaskSuspend ( TaskHandle_t xTaskToSuspend )

Here is the call graph for this function:

◆ vTaskSuspendAll()

void vTaskSuspendAll ( void )

Here is the caller graph for this function:

◆ vTaskSwitchContext()

void vTaskSwitchContext ( void )

Here is the caller graph for this function:

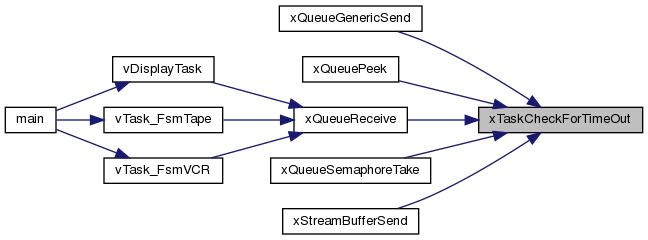

◆ xTaskCheckForTimeOut()

BaseType_t xTaskCheckForTimeOut	(	TimeOut_t *const	pxTimeOut,
		TickType_t *const	pxTicksToWait
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xTaskGenericNotify()

BaseType_t xTaskGenericNotify	(	TaskHandle_t	xTaskToNotify,
		uint32_t	ulValue,
		eNotifyAction	eAction,
		uint32_t *	pulPreviousNotificationValue
	)

Here is the call graph for this function:

◆ xTaskGenericNotifyFromISR()

BaseType_t xTaskGenericNotifyFromISR	(	TaskHandle_t	xTaskToNotify,
		uint32_t	ulValue,
		eNotifyAction	eAction,
		uint32_t *	pulPreviousNotificationValue,
		BaseType_t *	pxHigherPriorityTaskWoken
	)

Here is the call graph for this function:

◆ xTaskGetCurrentTaskHandle()

TaskHandle_t xTaskGetCurrentTaskHandle ( void )

Here is the caller graph for this function:

◆ xTaskGetTickCount()

TickType_t xTaskGetTickCount ( void )

Here is the caller graph for this function:

◆ xTaskGetTickCountFromISR()

TickType_t xTaskGetTickCountFromISR ( void )

◆ xTaskIncrementTick()

BaseType_t xTaskIncrementTick ( void )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xTaskNotifyStateClear()

BaseType_t xTaskNotifyStateClear ( TaskHandle_t xTask )

Here is the caller graph for this function:

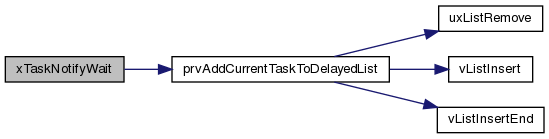

◆ xTaskNotifyWait()

BaseType_t xTaskNotifyWait	(	uint32_t	ulBitsToClearOnEntry,
		uint32_t	ulBitsToClearOnExit,
		uint32_t *	pulNotificationValue,
		TickType_t	xTicksToWait
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xTaskRemoveFromEventList()

BaseType_t xTaskRemoveFromEventList ( const List_t *const pxEventList )

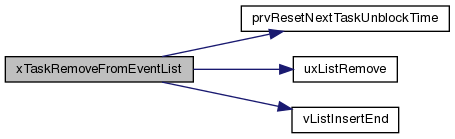

Here is the call graph for this function:

Here is the caller graph for this function:

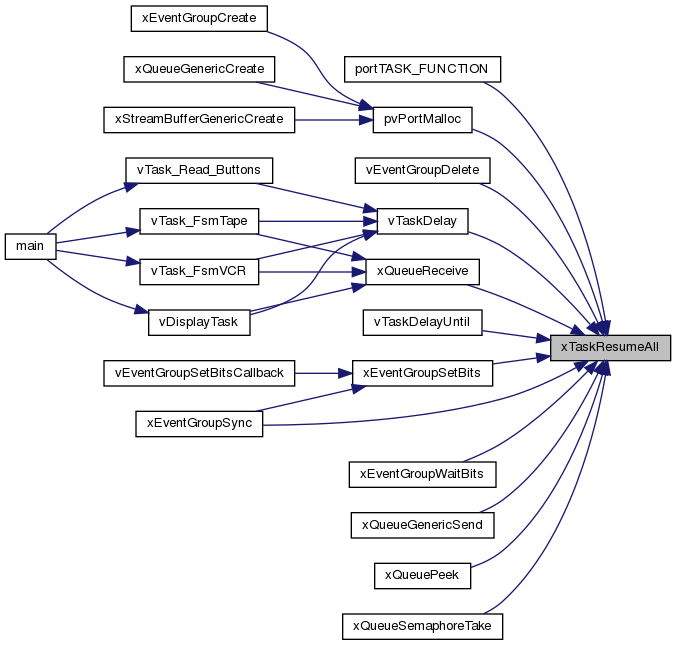

◆ xTaskResumeAll()

BaseType_t xTaskResumeAll ( void )

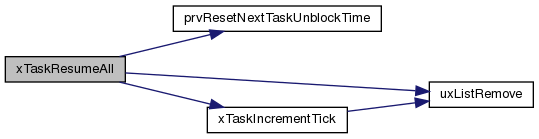

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ pxCurrentTCB

PRIVILEGED_DATA TCB_t* volatile pxCurrentTCB = NULL

◆ pxDelayedTaskList

PRIVILEGED_DATA List_t* volatile pxDelayedTaskList

static

◆ pxOverflowDelayedTaskList

PRIVILEGED_DATA List_t* volatile pxOverflowDelayedTaskList

static

◆ pxReadyTasksLists

PRIVILEGED_DATA List_t pxReadyTasksLists[configMAX_PRIORITIES]

static

◆ uxCurrentNumberOfTasks

PRIVILEGED_DATA volatile UBaseType_t uxCurrentNumberOfTasks = ( UBaseType_t ) 0U

static

◆ uxDeletedTasksWaitingCleanUp

PRIVILEGED_DATA volatile UBaseType_t uxDeletedTasksWaitingCleanUp = ( UBaseType_t ) 0U

static

◆ uxPendedTicks

PRIVILEGED_DATA volatile UBaseType_t uxPendedTicks = ( UBaseType_t ) 0U

static

◆ uxSchedulerSuspended

PRIVILEGED_DATA volatile UBaseType_t uxSchedulerSuspended = ( UBaseType_t ) pdFALSE

static

◆ uxTaskNumber

PRIVILEGED_DATA UBaseType_t uxTaskNumber = ( UBaseType_t ) 0U

static

◆ uxTopReadyPriority

PRIVILEGED_DATA volatile UBaseType_t uxTopReadyPriority = tskIDLE_PRIORITY

static

◆ xDelayedTaskList1

PRIVILEGED_DATA List_t xDelayedTaskList1

static

◆ xDelayedTaskList2

PRIVILEGED_DATA List_t xDelayedTaskList2

static

◆ xIdleTaskHandle

PRIVILEGED_DATA TaskHandle_t xIdleTaskHandle = NULL

static

◆ xNextTaskUnblockTime

PRIVILEGED_DATA volatile TickType_t xNextTaskUnblockTime = ( TickType_t ) 0U

static

◆ xNumOfOverflows

PRIVILEGED_DATA volatile BaseType_t xNumOfOverflows = ( BaseType_t ) 0

static

◆ xPendingReadyList

PRIVILEGED_DATA List_t xPendingReadyList

static

◆ xSchedulerRunning

PRIVILEGED_DATA volatile BaseType_t xSchedulerRunning = pdFALSE

static

◆ xSuspendedTaskList

PRIVILEGED_DATA List_t xSuspendedTaskList

static

◆ xTasksWaitingTermination

PRIVILEGED_DATA List_t xTasksWaitingTermination

static

◆ xTickCount

PRIVILEGED_DATA volatile TickType_t xTickCount = ( TickType_t ) configINITIAL_TICK_COUNT

static

◆ xYieldPending

PRIVILEGED_DATA volatile BaseType_t xYieldPending = pdFALSE

static

Data Structures

Macros

Typedefs

Functions

Variables

Macro Definition Documentation

◆ configIDLE_TASK_NAME

◆ MPU_WRAPPERS_INCLUDED_FROM_API_FILE

◆ portRESET_READY_PRIORITY

◆ prvAddTaskToReadyList

◆ prvGetTCBFromHandle

◆ taskEVENT_LIST_ITEM_VALUE_IN_USE

◆ taskNOT_WAITING_NOTIFICATION

◆ taskNOTIFICATION_RECEIVED

◆ taskRECORD_READY_PRIORITY

◆ taskRESET_READY_PRIORITY

◆ taskSELECT_HIGHEST_PRIORITY_TASK

◆ taskSWITCH_DELAYED_LISTS

◆ taskWAITING_NOTIFICATION

◆ taskYIELD_IF_USING_PREEMPTION

◆ tskBLOCKED_CHAR

◆ tskDELETED_CHAR

◆ tskDYNAMICALLY_ALLOCATED_STACK_AND_TCB

◆ tskREADY_CHAR

◆ tskSET_NEW_STACKS_TO_KNOWN_VALUE

◆ tskSTACK_FILL_BYTE

◆ tskSTATIC_AND_DYNAMIC_ALLOCATION_POSSIBLE

◆ tskSTATICALLY_ALLOCATED_STACK_AND_TCB

◆ tskSTATICALLY_ALLOCATED_STACK_ONLY

◆ tskSUSPENDED_CHAR

Typedef Documentation

◆ TCB_t

◆ tskTCB

Function Documentation

◆ eTaskGetState()

◆ pcTaskGetName()

◆ portTASK_FUNCTION()

◆ prvAddCurrentTaskToDelayedList()

◆ prvAddNewTaskToReadyList()

◆ prvCheckTasksWaitingTermination()

◆ prvDeleteTCB()

◆ prvInitialiseNewTask()

◆ prvInitialiseTaskLists() [1/2]

◆ prvInitialiseTaskLists() [2/2]

◆ prvResetNextTaskUnblockTime()

◆ prvTaskIsTaskSuspended()

◆ ulTaskNotifyTake()

◆ uxTaskGetNumberOfTasks()

◆ uxTaskPriorityGet()

◆ uxTaskPriorityGetFromISR()

◆ uxTaskResetEventItemValue()

◆ vTaskDelay()

◆ vTaskDelayUntil()

◆ vTaskDelete()

◆ vTaskEndScheduler()

◆ vTaskInternalSetTimeOutState()

◆ vTaskMissedYield()

◆ vTaskNotifyGiveFromISR()

◆ vTaskPlaceOnEventList()

◆ vTaskPlaceOnUnorderedEventList()

◆ vTaskPrioritySet()

◆ vTaskRemoveFromUnorderedEventList()

◆ vTaskResume()

◆ vTaskSetTimeOutState()

◆ vTaskStartScheduler()

◆ vTaskSuspend()

◆ vTaskSuspendAll()

◆ vTaskSwitchContext()

◆ xTaskCheckForTimeOut()

◆ xTaskGenericNotify()

◆ xTaskGenericNotifyFromISR()

◆ xTaskGetCurrentTaskHandle()

◆ xTaskGetTickCount()

◆ xTaskGetTickCountFromISR()

◆ xTaskIncrementTick()

◆ xTaskNotifyStateClear()

◆ xTaskNotifyWait()

◆ xTaskRemoveFromEventList()

◆ xTaskResumeAll()

Variable Documentation
