FsmTape.c File Reference

FSM for Tape. More...

#include "ES2_V4_app.h"

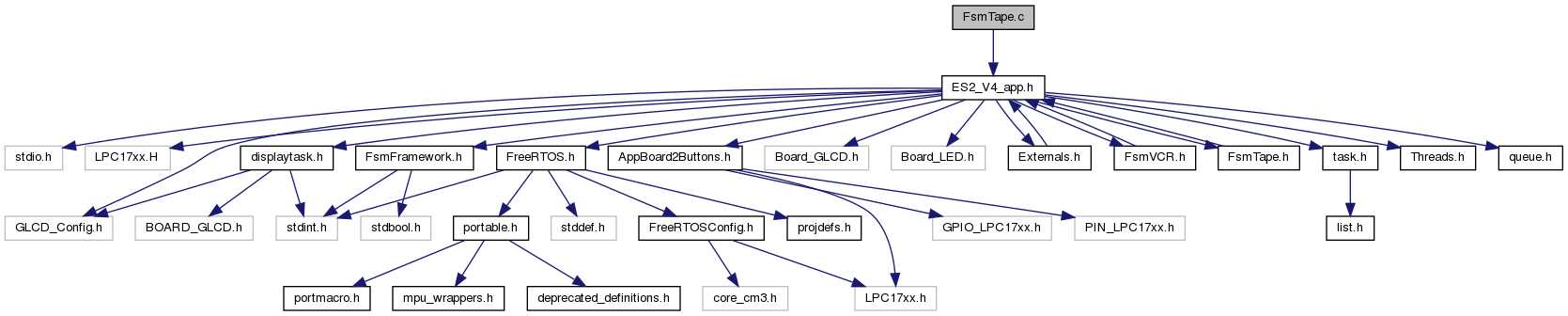

Include dependency graph for FsmTape.c:

Functions
_Bool	bFsmTapeInitialize (void)
	init Tape FSM More...
_Bool	bFsmTapeDispatchEvent (int32_t s32Event)
	dispatch event Tape FSM More...
_Bool	bFsmTapeIsStateChanged ()
	check if state changed More...
int32_t	s32FsmTapeGetState ()
	get FSM state More...
const char *	pcFsmTapeGetStateName ()
	get FSM state name More...
void	vEntry_sTapeOut (void)
	entry for sTapeOut More...
void	vEntry_sTapeBegin (void)
	entry for sTapeBegin More...
void	vEntry_sTapeEnd (void)
	entry for sTapeEnd More...
void	vEntry_sTapeBetween (void)
	entry for sTapeBetween More...

Variables
sStateMachine_t	sFsmTape
static const char *	pcFsmTapestates_names [] = {"Out","Begin","End","Between", "LastStateTape"}
sStateTransitions_t	asEventsFsmTapeOut []
sStateTransitions_t	asEventsFsmTapeBegin []
sStateTransitions_t	asEventsFsmTapeEnd []
sStateTransitions_t	asEventsFsmTapeBetween []
sStateTable_t	asFsmTapeStates []

Detailed Description

FSM for Tape.

Author

Hendrik Schutter

Version

V1.0

Date

27.10.2020

This file contains the FSM for Tape.

Function Documentation

bFsmTapeDispatchEvent()

bFsmTapeDispatchEvent

(

int32_t

s32Event

)

dispatch event Tape FSM

Sends an event to the state machine.

Parameters

void

Returns

_Bool

Author

hendrik schutter

Date

27.10.2020

Here is the call graph for this function:

Here is the caller graph for this function:

bFsmTapeInitialize()

bFsmTapeInitialize

(

void

)

init Tape FSM

Wrapper function to statemachine_init().

Parameters

void

Returns

_Bool

Author

hendrik schutter

Date

27.10.2020

Here is the call graph for this function:

Here is the caller graph for this function:

bFsmTapeIsStateChanged()

bFsmTapeIsStateChanged

(

void

)

check if state changed

Indicates if a state changed happend.

Parameters

voids

Returns

_Bool

Author

hendrik schutter

Date

27.10.2020

Here is the call graph for this function:

Here is the caller graph for this function:

pcFsmTapeGetStateName()

pcFsmTapeGetStateName

(

void

)

get FSM state name

Get the name of the current state.

Parameters

void

Returns

const char* State Name

Author

hendrik schutter

Date

27.10.2020

Here is the call graph for this function:

s32FsmTapeGetState()

s32FsmTapeGetState

(

void

)

get FSM state

Returns the current state of the fsm.

Parameters

voids

Returns

int32_t FSM state

Author

hendrik schutter

Date

27.10.2020

Here is the call graph for this function:

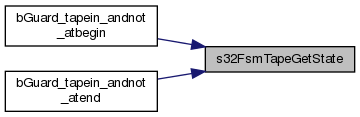

Here is the caller graph for this function:

vEntry_sTapeBegin()

vEntry_sTapeBegin

(

void

)

entry for sTapeBegin

Parameters

void

Returns

void

Author

hendrik schutter

Date

27.10.2020

vEntry_sTapeBetween()

vEntry_sTapeBetween

(

void

)

entry for sTapeBetween

Parameters

void

Returns

void

Author

hendrik schutter

Date

27.10.2020

vEntry_sTapeEnd()

vEntry_sTapeEnd

(

void

)

entry for sTapeEnd

Parameters

void

Returns

void

Author

hendrik schutter

Date

27.10.2020

vEntry_sTapeOut()

vEntry_sTapeOut

(

void

)

entry for sTapeOut

Parameters

void

Returns

void

Author

hendrik schutter

Date

27.10.2020

Variable Documentation

asEventsFsmTapeBegin

sStateTransitions_t asEventsFsmTapeBegin[]

Initial value:

= {
    { evBegin, 0, 0, sTapeBetween },
    { evInOut, 0, 0, sTapeOut       },
    { evEnd,     0, 0, sTapeEnd         }
}

asEventsFsmTapeBetween

sStateTransitions_t asEventsFsmTapeBetween[]

Initial value:

= {
    { evBegin, 0, 0, sTapeBegin },
    { evInOut, 0, 0, sTapeOut   },
    { evEnd,     0, 0, sTapeEnd     }
}

asEventsFsmTapeEnd

sStateTransitions_t asEventsFsmTapeEnd[]

Initial value:

= {
    { evBegin, 0, 0, sTapeBegin },
    { evInOut, 0, 0, sTapeOut },
    { evEnd,   0, 0, sTapeBetween }
}

asEventsFsmTapeOut

sStateTransitions_t asEventsFsmTapeOut[]

Initial value:

= {
    { evBegin,   0, 0, FAULT_STATE },
    { evInOut,   0, 0, sTapeBetween},
    { evEnd,         0, 0, FAULT_STATE }
}

asFsmTapeStates

sStateTable_t asFsmTapeStates[]

Initial value:

= {
    { sTapeOut,         vEntry_sTapeOut,            0, 0, asEventsFsmTapeOut,           0 },
    { sTapeBegin,   vEntry_sTapeBegin,      0, 0, asEventsFsmTapeBegin,     0 },
    { sTapeEnd,         vEntry_sTapeEnd,            0, 0,   asEventsFsmTapeEnd,         0 },
    { sTapeBetween, vEntry_sTapeBetween,    0, 0,   asEventsFsmTapeBetween, 0 }
}

pcFsmTapestates_names

const char* pcFsmTapestates_names[] = {"Out","Begin","End","Between", "LastStateTape"}

static

sFsmTape

sStateMachine_t sFsmTape
