queue.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	queueSEND_TO_BACK   ( ( BaseType_t ) 0 )
#define	queueSEND_TO_FRONT   ( ( BaseType_t ) 1 )
#define	queueOVERWRITE   ( ( BaseType_t ) 2 )
#define	queueQUEUE_TYPE_BASE   ( ( uint8_t ) 0U )
#define	queueQUEUE_TYPE_SET   ( ( uint8_t ) 0U )
#define	queueQUEUE_TYPE_MUTEX   ( ( uint8_t ) 1U )
#define	queueQUEUE_TYPE_COUNTING_SEMAPHORE   ( ( uint8_t ) 2U )
#define	queueQUEUE_TYPE_BINARY_SEMAPHORE   ( ( uint8_t ) 3U )
#define	queueQUEUE_TYPE_RECURSIVE_MUTEX   ( ( uint8_t ) 4U )
#define	xQueueSendToFront(xQueue, pvItemToQueue, xTicksToWait)   xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), ( xTicksToWait ), queueSEND_TO_FRONT )
#define	xQueueSendToBack(xQueue, pvItemToQueue, xTicksToWait)   xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), ( xTicksToWait ), queueSEND_TO_BACK )
#define	xQueueSend(xQueue, pvItemToQueue, xTicksToWait)   xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), ( xTicksToWait ), queueSEND_TO_BACK )
#define	xQueueOverwrite(xQueue, pvItemToQueue)   xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), 0, queueOVERWRITE )
#define	xQueueSendToFrontFromISR(xQueue, pvItemToQueue, pxHigherPriorityTaskWoken)   xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueSEND_TO_FRONT )
#define	xQueueSendToBackFromISR(xQueue, pvItemToQueue, pxHigherPriorityTaskWoken)   xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueSEND_TO_BACK )
#define	xQueueOverwriteFromISR(xQueue, pvItemToQueue, pxHigherPriorityTaskWoken)   xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueOVERWRITE )
#define	xQueueSendFromISR(xQueue, pvItemToQueue, pxHigherPriorityTaskWoken)   xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueSEND_TO_BACK )
#define	xQueueReset(xQueue)   xQueueGenericReset( xQueue, pdFALSE )

Typedefs
typedef void *	QueueHandle_t
typedef void *	QueueSetHandle_t
typedef void *	QueueSetMemberHandle_t

Functions
BaseType_t	xQueueGenericSend (QueueHandle_t xQueue, const void *const pvItemToQueue, TickType_t xTicksToWait, const BaseType_t xCopyPosition) PRIVILEGED_FUNCTION
BaseType_t	xQueuePeek (QueueHandle_t xQueue, void *const pvBuffer, TickType_t xTicksToWait) PRIVILEGED_FUNCTION
BaseType_t	xQueuePeekFromISR (QueueHandle_t xQueue, void *const pvBuffer) PRIVILEGED_FUNCTION
BaseType_t	xQueueReceive (QueueHandle_t xQueue, void *const pvBuffer, TickType_t xTicksToWait) PRIVILEGED_FUNCTION
UBaseType_t	uxQueueMessagesWaiting (const QueueHandle_t xQueue) PRIVILEGED_FUNCTION
UBaseType_t	uxQueueSpacesAvailable (const QueueHandle_t xQueue) PRIVILEGED_FUNCTION
void	vQueueDelete (QueueHandle_t xQueue) PRIVILEGED_FUNCTION
BaseType_t	xQueueGenericSendFromISR (QueueHandle_t xQueue, const void *const pvItemToQueue, BaseType_t *const pxHigherPriorityTaskWoken, const BaseType_t xCopyPosition) PRIVILEGED_FUNCTION
BaseType_t	xQueueGiveFromISR (QueueHandle_t xQueue, BaseType_t *const pxHigherPriorityTaskWoken) PRIVILEGED_FUNCTION
BaseType_t	xQueueReceiveFromISR (QueueHandle_t xQueue, void *const pvBuffer, BaseType_t *const pxHigherPriorityTaskWoken) PRIVILEGED_FUNCTION
BaseType_t	xQueueIsQueueEmptyFromISR (const QueueHandle_t xQueue) PRIVILEGED_FUNCTION
BaseType_t	xQueueIsQueueFullFromISR (const QueueHandle_t xQueue) PRIVILEGED_FUNCTION
UBaseType_t	uxQueueMessagesWaitingFromISR (const QueueHandle_t xQueue) PRIVILEGED_FUNCTION
BaseType_t	xQueueCRSendFromISR (QueueHandle_t xQueue, const void *pvItemToQueue, BaseType_t xCoRoutinePreviouslyWoken)
BaseType_t	xQueueCRReceiveFromISR (QueueHandle_t xQueue, void *pvBuffer, BaseType_t *pxTaskWoken)
BaseType_t	xQueueCRSend (QueueHandle_t xQueue, const void *pvItemToQueue, TickType_t xTicksToWait)
BaseType_t	xQueueCRReceive (QueueHandle_t xQueue, void *pvBuffer, TickType_t xTicksToWait)
QueueHandle_t	xQueueCreateMutex (const uint8_t ucQueueType) PRIVILEGED_FUNCTION
QueueHandle_t	xQueueCreateMutexStatic (const uint8_t ucQueueType, StaticQueue_t *pxStaticQueue) PRIVILEGED_FUNCTION
QueueHandle_t	xQueueCreateCountingSemaphore (const UBaseType_t uxMaxCount, const UBaseType_t uxInitialCount) PRIVILEGED_FUNCTION
QueueHandle_t	xQueueCreateCountingSemaphoreStatic (const UBaseType_t uxMaxCount, const UBaseType_t uxInitialCount, StaticQueue_t *pxStaticQueue) PRIVILEGED_FUNCTION
BaseType_t	xQueueSemaphoreTake (QueueHandle_t xQueue, TickType_t xTicksToWait) PRIVILEGED_FUNCTION
void *	xQueueGetMutexHolder (QueueHandle_t xSemaphore) PRIVILEGED_FUNCTION
void *	xQueueGetMutexHolderFromISR (QueueHandle_t xSemaphore) PRIVILEGED_FUNCTION
BaseType_t	xQueueTakeMutexRecursive (QueueHandle_t xMutex, TickType_t xTicksToWait) PRIVILEGED_FUNCTION
BaseType_t	xQueueGiveMutexRecursive (QueueHandle_t pxMutex) PRIVILEGED_FUNCTION
QueueSetHandle_t	xQueueCreateSet (const UBaseType_t uxEventQueueLength) PRIVILEGED_FUNCTION
BaseType_t	xQueueAddToSet (QueueSetMemberHandle_t xQueueOrSemaphore, QueueSetHandle_t xQueueSet) PRIVILEGED_FUNCTION
BaseType_t	xQueueRemoveFromSet (QueueSetMemberHandle_t xQueueOrSemaphore, QueueSetHandle_t xQueueSet) PRIVILEGED_FUNCTION
QueueSetMemberHandle_t	xQueueSelectFromSet (QueueSetHandle_t xQueueSet, const TickType_t xTicksToWait) PRIVILEGED_FUNCTION
QueueSetMemberHandle_t	xQueueSelectFromSetFromISR (QueueSetHandle_t xQueueSet) PRIVILEGED_FUNCTION
void	vQueueWaitForMessageRestricted (QueueHandle_t xQueue, TickType_t xTicksToWait, const BaseType_t xWaitIndefinitely) PRIVILEGED_FUNCTION
BaseType_t	xQueueGenericReset (QueueHandle_t xQueue, BaseType_t xNewQueue) PRIVILEGED_FUNCTION
void	vQueueSetQueueNumber (QueueHandle_t xQueue, UBaseType_t uxQueueNumber) PRIVILEGED_FUNCTION
UBaseType_t	uxQueueGetQueueNumber (QueueHandle_t xQueue) PRIVILEGED_FUNCTION
uint8_t	ucQueueGetQueueType (QueueHandle_t xQueue) PRIVILEGED_FUNCTION

Macro Definition Documentation

queueOVERWRITE

#define queueOVERWRITE   ( ( BaseType_t ) 2 )

queueQUEUE_TYPE_BASE

#define queueQUEUE_TYPE_BASE   ( ( uint8_t ) 0U )

queueQUEUE_TYPE_BINARY_SEMAPHORE

#define queueQUEUE_TYPE_BINARY_SEMAPHORE   ( ( uint8_t ) 3U )

queueQUEUE_TYPE_COUNTING_SEMAPHORE

#define queueQUEUE_TYPE_COUNTING_SEMAPHORE   ( ( uint8_t ) 2U )

queueQUEUE_TYPE_MUTEX

#define queueQUEUE_TYPE_MUTEX   ( ( uint8_t ) 1U )

queueQUEUE_TYPE_RECURSIVE_MUTEX

#define queueQUEUE_TYPE_RECURSIVE_MUTEX   ( ( uint8_t ) 4U )

queueQUEUE_TYPE_SET

#define queueQUEUE_TYPE_SET   ( ( uint8_t ) 0U )

queueSEND_TO_BACK

#define queueSEND_TO_BACK   ( ( BaseType_t ) 0 )

queueSEND_TO_FRONT

#define queueSEND_TO_FRONT   ( ( BaseType_t ) 1 )

xQueueOverwrite

#define xQueueOverwrite	(		xQueue,
			pvItemToQueue
	)		xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), 0, queueOVERWRITE )

xQueueOverwriteFromISR

#define xQueueOverwriteFromISR	(		xQueue,
			pvItemToQueue,
			pxHigherPriorityTaskWoken
	)		xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueOVERWRITE )

xQueueReset

#define xQueueReset

(

xQueue

)

xQueueGenericReset( xQueue, pdFALSE )

xQueueSend

#define xQueueSend	(		xQueue,
			pvItemToQueue,
			xTicksToWait
	)		xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), ( xTicksToWait ), queueSEND_TO_BACK )

xQueueSendFromISR

#define xQueueSendFromISR	(		xQueue,
			pvItemToQueue,
			pxHigherPriorityTaskWoken
	)		xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueSEND_TO_BACK )

xQueueSendToBack

#define xQueueSendToBack	(		xQueue,
			pvItemToQueue,
			xTicksToWait
	)		xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), ( xTicksToWait ), queueSEND_TO_BACK )

xQueueSendToBackFromISR

#define xQueueSendToBackFromISR	(		xQueue,
			pvItemToQueue,
			pxHigherPriorityTaskWoken
	)		xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueSEND_TO_BACK )

xQueueSendToFront

#define xQueueSendToFront	(		xQueue,
			pvItemToQueue,
			xTicksToWait
	)		xQueueGenericSend( ( xQueue ), ( pvItemToQueue ), ( xTicksToWait ), queueSEND_TO_FRONT )

xQueueSendToFrontFromISR

#define xQueueSendToFrontFromISR	(		xQueue,
			pvItemToQueue,
			pxHigherPriorityTaskWoken
	)		xQueueGenericSendFromISR( ( xQueue ), ( pvItemToQueue ), ( pxHigherPriorityTaskWoken ), queueSEND_TO_FRONT )

Typedef Documentation

QueueHandle_t

typedef void* QueueHandle_t

Type by which queues are referenced. For example, a call to xQueueCreate() returns an QueueHandle_t variable that can then be used as a parameter to xQueueSend(), xQueueReceive(), etc.

QueueSetHandle_t

typedef void* QueueSetHandle_t

Type by which queue sets are referenced. For example, a call to xQueueCreateSet() returns an xQueueSet variable that can then be used as a parameter to xQueueSelectFromSet(), xQueueAddToSet(), etc.

QueueSetMemberHandle_t

typedef void* QueueSetMemberHandle_t

Queue sets can contain both queues and semaphores, so the QueueSetMemberHandle_t is defined as a type to be used where a parameter or return value can be either an QueueHandle_t or an SemaphoreHandle_t.

Function Documentation

ucQueueGetQueueType()

uint8_t ucQueueGetQueueType

(

QueueHandle_t

xQueue

)

uxQueueGetQueueNumber()

UBaseType_t uxQueueGetQueueNumber

(

QueueHandle_t

xQueue

)

uxQueueMessagesWaiting()

UBaseType_t uxQueueMessagesWaiting

(

const QueueHandle_t

xQueue

)

uxQueueMessagesWaitingFromISR()

UBaseType_t uxQueueMessagesWaitingFromISR

(

const QueueHandle_t

xQueue

)

uxQueueSpacesAvailable()

UBaseType_t uxQueueSpacesAvailable

(

const QueueHandle_t

xQueue

)

vQueueDelete()

void vQueueDelete

(

QueueHandle_t

xQueue

)

Here is the call graph for this function:

vQueueSetQueueNumber()

void vQueueSetQueueNumber	(	QueueHandle_t	xQueue,
		UBaseType_t	uxQueueNumber
	)

vQueueWaitForMessageRestricted()

void vQueueWaitForMessageRestricted	(	QueueHandle_t	xQueue,
		TickType_t	xTicksToWait,
		const BaseType_t	xWaitIndefinitely
	)

xQueueAddToSet()

BaseType_t xQueueAddToSet	(	QueueSetMemberHandle_t	xQueueOrSemaphore,
		QueueSetHandle_t	xQueueSet
	)

xQueueCreateCountingSemaphore()

QueueHandle_t xQueueCreateCountingSemaphore	(	const UBaseType_t	uxMaxCount,
		const UBaseType_t	uxInitialCount
	)

xQueueCreateCountingSemaphoreStatic()

QueueHandle_t xQueueCreateCountingSemaphoreStatic	(	const UBaseType_t	uxMaxCount,
		const UBaseType_t	uxInitialCount,
		StaticQueue_t *	pxStaticQueue
	)

xQueueCreateMutex()

QueueHandle_t xQueueCreateMutex

(

const uint8_t

ucQueueType

)

xQueueCreateMutexStatic()

QueueHandle_t xQueueCreateMutexStatic	(	const uint8_t	ucQueueType,
		StaticQueue_t *	pxStaticQueue
	)

xQueueCreateSet()

QueueSetHandle_t xQueueCreateSet

(

const UBaseType_t

uxEventQueueLength

)

xQueueCRReceive()

BaseType_t xQueueCRReceive	(	QueueHandle_t	xQueue,
		void *	pvBuffer,
		TickType_t	xTicksToWait
	)

xQueueCRReceiveFromISR()

BaseType_t xQueueCRReceiveFromISR	(	QueueHandle_t	xQueue,
		void *	pvBuffer,
		BaseType_t *	pxTaskWoken
	)

xQueueCRSend()

BaseType_t xQueueCRSend	(	QueueHandle_t	xQueue,
		const void *	pvItemToQueue,
		TickType_t	xTicksToWait
	)

xQueueCRSendFromISR()

BaseType_t xQueueCRSendFromISR	(	QueueHandle_t	xQueue,
		const void *	pvItemToQueue,
		BaseType_t	xCoRoutinePreviouslyWoken
	)

xQueueGenericReset()

BaseType_t xQueueGenericReset	(	QueueHandle_t	xQueue,
		BaseType_t	xNewQueue
	)

Here is the call graph for this function:

Here is the caller graph for this function:

xQueueGenericSend()

BaseType_t xQueueGenericSend	(	QueueHandle_t	xQueue,
		const void *const	pvItemToQueue,
		TickType_t	xTicksToWait,
		const BaseType_t	xCopyPosition
	)

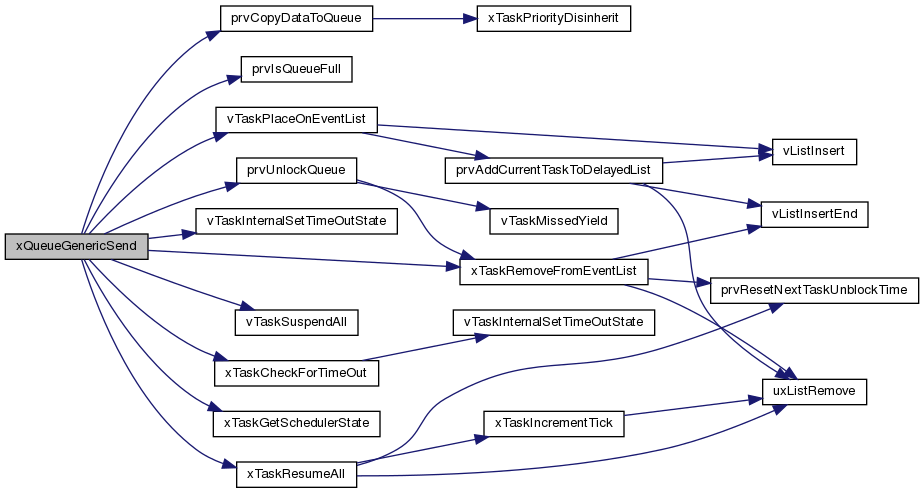

Here is the call graph for this function:

xQueueGenericSendFromISR()

BaseType_t xQueueGenericSendFromISR	(	QueueHandle_t	xQueue,
		const void *const	pvItemToQueue,
		BaseType_t *const	pxHigherPriorityTaskWoken,
		const BaseType_t	xCopyPosition
	)

Here is the call graph for this function:

xQueueGetMutexHolder()

void* xQueueGetMutexHolder

(

QueueHandle_t

xSemaphore

)

xQueueGetMutexHolderFromISR()

void* xQueueGetMutexHolderFromISR

(

QueueHandle_t

xSemaphore

)

xQueueGiveFromISR()

BaseType_t xQueueGiveFromISR	(	QueueHandle_t	xQueue,
		BaseType_t *const	pxHigherPriorityTaskWoken
	)

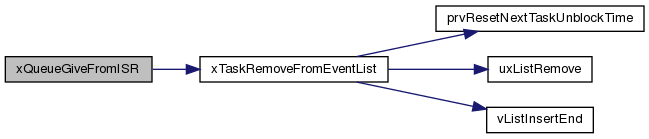

Here is the call graph for this function:

xQueueGiveMutexRecursive()

BaseType_t xQueueGiveMutexRecursive

(

QueueHandle_t

pxMutex

)

xQueueIsQueueEmptyFromISR()

BaseType_t xQueueIsQueueEmptyFromISR

(

const QueueHandle_t

xQueue

)

xQueueIsQueueFullFromISR()

BaseType_t xQueueIsQueueFullFromISR

(

const QueueHandle_t

xQueue

)

xQueuePeek()

BaseType_t xQueuePeek	(	QueueHandle_t	xQueue,
		void *const	pvBuffer,
		TickType_t	xTicksToWait
	)

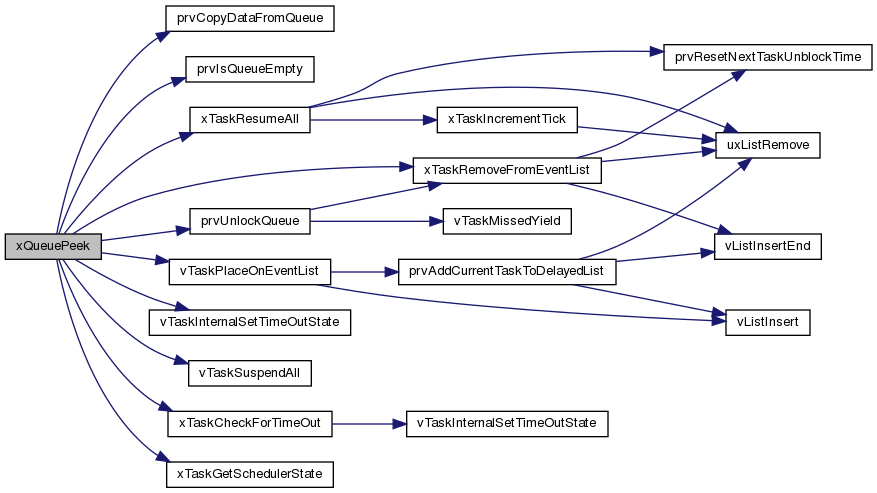

Here is the call graph for this function:

xQueuePeekFromISR()

BaseType_t xQueuePeekFromISR	(	QueueHandle_t	xQueue,
		void *const	pvBuffer
	)

Here is the call graph for this function:

xQueueReceive()

BaseType_t xQueueReceive	(	QueueHandle_t	xQueue,
		void *const	pvBuffer,
		TickType_t	xTicksToWait
	)

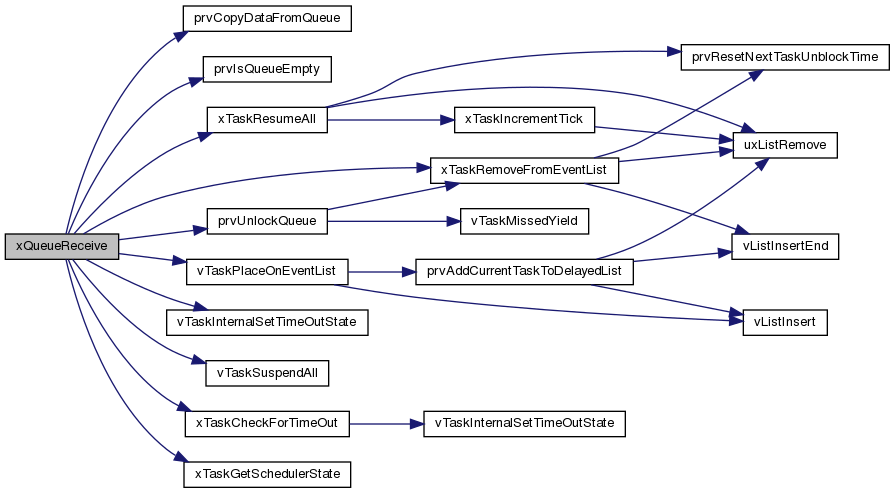

Here is the call graph for this function:

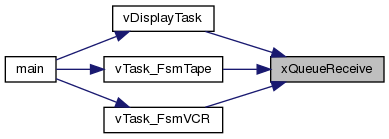

Here is the caller graph for this function:

xQueueReceiveFromISR()

BaseType_t xQueueReceiveFromISR	(	QueueHandle_t	xQueue,
		void *const	pvBuffer,
		BaseType_t *const	pxHigherPriorityTaskWoken
	)

Here is the call graph for this function:

xQueueRemoveFromSet()

BaseType_t xQueueRemoveFromSet	(	QueueSetMemberHandle_t	xQueueOrSemaphore,
		QueueSetHandle_t	xQueueSet
	)

xQueueSelectFromSet()

QueueSetMemberHandle_t xQueueSelectFromSet	(	QueueSetHandle_t	xQueueSet,
		const TickType_t	xTicksToWait
	)

xQueueSelectFromSetFromISR()

QueueSetMemberHandle_t xQueueSelectFromSetFromISR

(

QueueSetHandle_t

xQueueSet

)

xQueueSemaphoreTake()

BaseType_t xQueueSemaphoreTake	(	QueueHandle_t	xQueue,
		TickType_t	xTicksToWait
	)

Here is the call graph for this function:

xQueueTakeMutexRecursive()

BaseType_t xQueueTakeMutexRecursive	(	QueueHandle_t	xMutex,
		TickType_t	xTicksToWait
	)
