FsmFramework.h File Reference
#include <stdint.h>#include <stdbool.h>
Include dependency graph for FsmFramework.h:

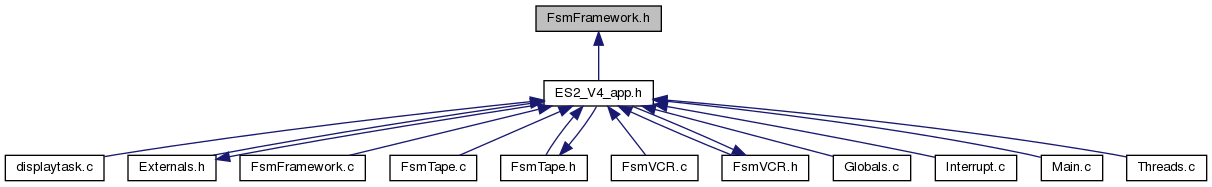

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | stateTransition |
| Event table holds events that can generate a state transition. More... | |
| struct | stateTableEvents |
| State table holds states and corresponding event tables. More... | |
| struct | stateMachine |
| All nesseccary data for a state machine. More... | |
Macros | |
| #define | SW_USE_ONENTRY 1 |
| Set to one, if onEntry() functions are needed. More... | |
| #define | SW_USE_ONDO 0 |
| Set to one, if onDo() functions are needed. More... | |
| #define | SW_USE_ONEXIT 1 |
| Set to one, if onExit() functions are needed. More... | |
| #define | SW_USE_TRANSITIONFUNCTION 1 |
| Set to one, if transition functions are nedded. More... | |
| #define | IS_IN(statemachine, state) (statemachine.s32ActualState == state) |
| MACRO checking if statemachine is in state. More... | |
Typedefs | |
| typedef struct stateTableEvents | sStateTable_t |
| typedef sStateTable_t * | psStateTable_t |
| typedef enum specialStates | eSpecialStates_t |
| Special states to use with nextStateId in sStateTransitions_t. More... | |
| typedef enum specialEvents | eSpecialEvents_t |
| Special events that can occur while the state machine is running. More... | |
| typedef void(* | vCallback_t) (void) |
| Callback typedef for better readable code. More... | |
| typedef _Bool(* | bCallbackGuard_t) (void) |
| Callback for guard functions, that return either true or false. More... | |
| typedef struct stateTransition | sStateTransitions_t |
| Event table holds events that can generate a state transition. More... | |
| typedef sStateTransitions_t * | psStateTransitions_t |
| typedef struct stateTableEvents | sStateTableEvents_t |
| State table holds states and corresponding event tables. More... | |
| typedef sStateTableEvents_t * | psStateTableEvents_t |
| typedef struct stateMachine | sStateMachine_t |
| All nesseccary data for a state machine. More... | |
| typedef sStateMachine_t * | psStateMachine_t |
Enumerations | |
| enum | specialStates { FAULT_STATE = -1, FINAL_STATE = -2 } |
| Special states to use with nextStateId in sStateTransitions_t. More... | |
| enum | specialEvents { NO_EVENT = -1, TIME_EVENT = -2 } |
| Special events that can occur while the state machine is running. More... | |
Functions | |
| _Bool | bFsmframeworkInitialize (psStateMachine_t psStateMachine, psStateTable_t psStateTable, int32_t s32StartState, uint32_t u32StateCount, uint32_t u32EventCount, vCallback_t vInitCallback) |
| Initialization of the State Machine. More... | |
| _Bool | bFsmframeworkDispatchEvent (psStateMachine_t psStateMachine, int32_t s32Event) |
| Dispatch Event. More... | |
| int32_t | s32FsmframeworkGetState (psStateMachine_t psStateMachine) |
| Get the actual state of a statemachine. More... | |
| _Bool | bFsmframeworkIsStateChanged (psStateMachine_t psStateMachine) |
| Get the statechanged flag. 1 if last event changed the state, 0 if last event did not changed the state. More... | |
